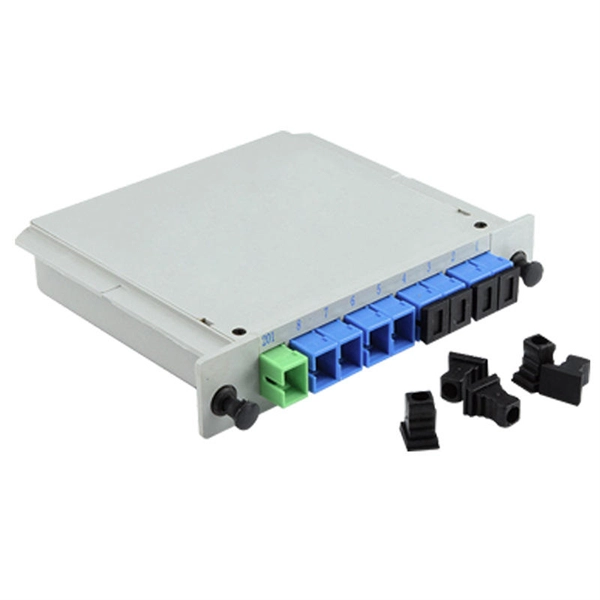

Installation method for fiber optic cable outlet

Installing a fiber optic cable outlet involves careful planning, proper cable handling, secure routing, precise termination, and thorough testing to ensure optimal network performance.Planning and Site Survey

Before installation, conduct a site survey to identify the cable route, potential obstacles, and environmental hazards such as sharp edges, high temperatures, or machinery that could damage the cable. Ensure compliance with local building codes and obtain necessary permits. Plan for future expansion by leaving extra conduit space (typically 25–40% additional capacity) and determine the locations for intermediate access points, splice boxes, and the outlet itself ( ).

Cable Handling and Routing

• Protect the cable: Keep protective sheathing in place until installation. Cover cable ends with end caps or tape to prevent moisture ingress ( ).
• Avoid sharp bends: Do not bend the cable below its minimum bend radius. Use smooth curves and avoid sharp turns or edges ( ).
• Prevent twisting: Coil slack in a figure-eight pattern to prevent twists and mechanical stress ( ).
• Pulling techniques: Always pull from the cable's strength member or a breakaway pulling eye, never the fiber itself. Use tension-monitoring equipment to avoid exceeding maximum load ( ).
• Conduit and trays: Secure cables in trays or conduits using hook-and-loop ties to prevent compression. For ducted runs, clear the conduit and apply a compatible silicone-based lubricant ( ).

Termination and Outlet Installation

• Splicing: Use fusion or mechanical splicing to join fibers. Protect splices with splice protectors and leave sufficient slack for maintenance ( ).
• Outlet connection: Terminate fibers at the outlet using pigtails or direct connector mounting. Connect the outlet to network equipment with patch cords ( ).
• Fire safety: Apply approved fire-stop compounds where walls or floors are penetrated ( ).

Testing and Verification

• OTDR testing: Use an Optical Time-Domain Reflectometer to check for reflection, splice quality, and bend losses ( ).
• OLTS testing: Measure optical loss to ensure compliance with ANSI/TIA-568 standards ( ).
• Documentation: Record cable routes, splice locations, and test results for future maintenance ( ).

Environmental and Safety Considerations

• Maintain ambient temperature within the cable's rated installation range (typically −30 °C to +60 °C) ( ).
• Avoid mechanical pressure points, especially where armored cables cross each other ( ).
• Follow a security plan and proper signaling for work areas, particularly in public or high-traffic locations ( ). By following these steps—planning, careful handling, proper routing, precise termination, and thorough testing—a fiber optic cable outlet can be installed safely and reliably, ensuring high-speed, low-latency network performance for years to come ( ).
