What does fusion splicing of a 288-core optical cable include

Fusion splicing a 288-core optical cable involves preparing, aligning, fusing, protecting, and testing each fiber or fiber ribbon to create low-loss, permanent connections.Overview

Fusion splicing is the process of permanently joining two optical fibers using heat, typically from an electric arc, to create a seamless optical path with minimal signal loss and high mechanical strength . For a 288-core cable, which usually consists of multiple fiber ribbons or bundles, the process is more complex than splicing single fibers due to the high fiber count and the need for precise alignment.

Key Steps in Fusion Splicing a 288-Core Cable

1. Cable Preparation
   • Strip the outer jacket and expose the fiber ribbons or buffer tubes carefully, ensuring no tension is applied to the fibers .
   • Remove protective coatings from each fiber using a precision fiber stripper, typically exposing 2–5 cm of bare fiber .
   • Clean the stripped fibers with alcohol wipes to remove dust, oils, or other contaminants .
2. Fiber Cleaving
   • Use a precision fiber cleaver to create a flat, perpendicular end face on each fiber. Proper cleaving is critical for low-loss splices .
   • Inspect the cleaved ends under a microscope to ensure a smooth, mirror-like surface.
3. Alignment
   • For ribbon fibers, multiple fibers can be spliced simultaneously using a ribbon fusion splicer.
   • Alignment can be core alignment (precise alignment of fiber cores for single-mode fibers) or clad alignment (alignment of the outer cladding, often used for multimode fibers), .
   • Modern fusion splicers provide automatic alignment and arc discharge control to ensure consistent splicing quality .
4. Fusion
   • The splicer generates a controlled electric arc to melt the fiber ends, which are then fused together. Surface tension helps achieve a strong, low-loss joint .
   • For a 288-core cable, splicing is typically done ribbon by ribbon, or in smaller groups, depending on the splicer capacity.

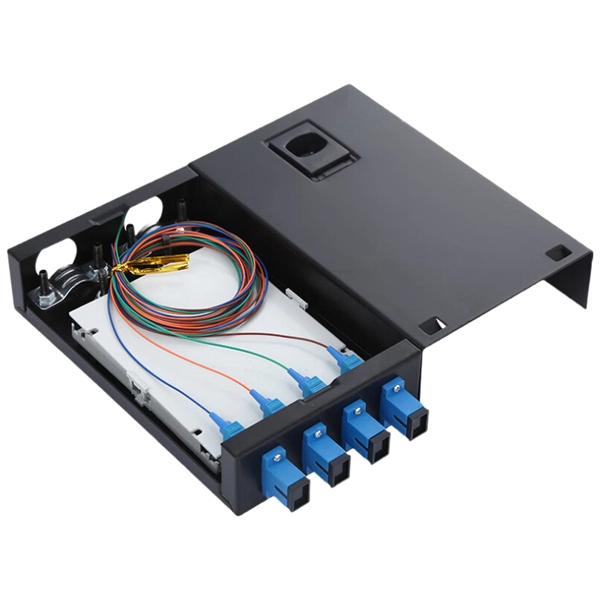

5. Splice Protection
   • After fusion, each splice is protected using heat-shrink sleeves or other protective coatings to maintain mechanical strength and environmental resistance .
   • Proper dressing of the fibers and strength members is essential to prevent stress or breakage near the splice.
6. Testing
   • Use an Optical Time-Domain Reflectometer (OTDR) or loss test set to verify splice quality, insertion loss, and continuity .
   • Testing ensures that all 288 fibers meet performance standards and that no splices are compromised.

Considerations for High-Core-Count Cables

• Ribbon Splicing Efficiency: Using ribbon splicers that can handle 12 or 24 fibers at once reduces time and ensures uniformity.
• Environmental Factors: Field splicing may require portable splicing kits with battery-powered splicers and protective enclosures.
• Documentation: Each splice should be labeled and recorded for network management and troubleshooting.
• Operator Skill: High-core-count splicing demands experienced technicians to minimize errors and maintain low-loss connections . In summary, fusion splicing a 288-core optical cable is a meticulous process involving careful preparation, precise cleaving, accurate alignment, controlled fusion, robust protection, and thorough testing to ensure reliable, low-loss optical connections across all fibers.
