How to connect a concealed fiber optic panel

To connect a concealed fiber optic network panel, carefully route the fiber, secure it in the panel, and ensure clean, properly aligned connections using the correct patch cords and connectors.Planning and Placement

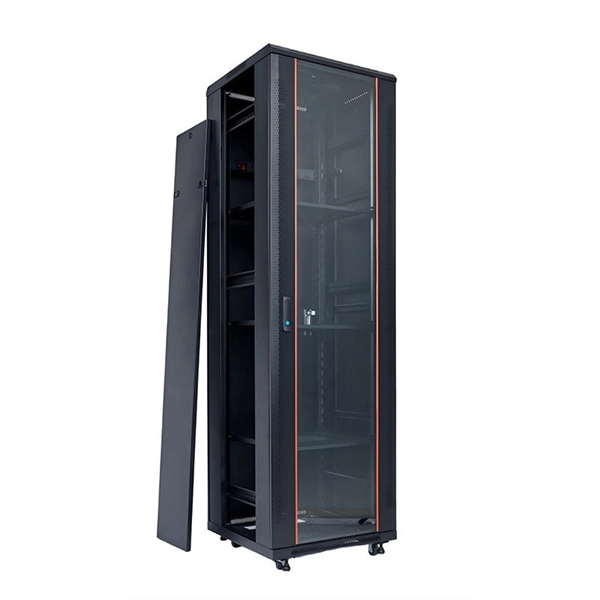

Start by selecting a suitable location for the concealed panel, such as inside a wall cabinet, closet, or dedicated media enclosure. Ensure the area is dry, temperature-stable, and accessible for maintenance. Concealed panels should still allow enough space for fiber bending radius and cable management to prevent signal loss or damage .

Choosing the Right Panel and Connectors

Fiber patch panels come in LC, SC, FC, ST, and MTP/MPO types, and you must match the panel to your fiber cable type (single-mode or multi-mode) . Wall-mount panels are ideal for concealed installations, while rack-mount panels are better for larger setups. Decide whether you need direct cross-connect or patch panel connections for your network design.

Routing and Securing Fiber

• Route the fiber carefully from the entry point to the panel, avoiding sharp bends, high-traffic areas, and heat sources .
• Use fiber cable management brackets or guides to prevent dangling cables and maintain proper bend radius.
• Insert the longer backbone fiber into the back of the panel and the shorter patch cords into the front ports for easy access .

Making Connections

• Clean all connectors with a lint-free fiber optic cleaning wipe or one-click cleaner before insertion to prevent signal loss .
• Align the connector keying correctly and click the connector securely into the panel port.
• For multi-fiber setups, ensure each fiber is labeled and color-coded according to TIA/EIA standards for easy identification .

Testing and Verification

• Power on the Optical Network Terminal (ONT) or connected devices and check for a solid link light indicating proper signal reception .
• Use a Visual Fault Locator (VFL) to detect breaks or sharp bends in the fiber by observing red light leakage along the cable .

Final Tips

• Avoid excessive pulling force; fiber is delicate and can break if stressed.
• Maintain a neat cable layout inside the concealed panel to allow future expansion or troubleshooting.
• Document the connections and port assignments for easier maintenance. By following these steps, you can achieve a reliable, high-speed fiber connection while keeping the network panel concealed and organized.
