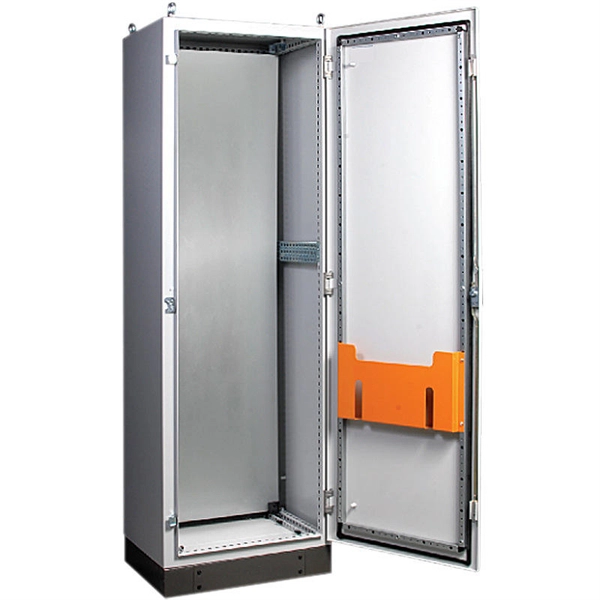

Fiber optic cable to fiber optic distribution frame

Fiber optic cables are terminated, spliced, and organized within an Optical Distribution Frame (ODF) or Fiber Distribution Frame (FDF) to ensure structured, protected, and scalable network connections.Overview of ODF/FDF

An Optical Distribution Frame (ODF) or Fiber Distribution Frame (FDF) serves as the central hub for managing fiber optic connections in data centers, telecom rooms, and enterprise networks. It provides a structured environment for splicing, termination, patching, and cable protection, ensuring proper bend radius, slack management, and long-term network reliability . ODFs can be wall-mounted for small-scale deployments or rack-mounted for high-density networks, with modular designs allowing for future expansion .

Steps to Connect Fiber Optic Cables

1. Cable Entry and Preparation
   • Route the fiber optic cable into the ODF/FDF through designated cable entry ports with grommets to prevent fraying .
   • Strip the outer sheath and strength members carefully, leaving the fibers intact.
   • Mechanically secure the cable to the frame to prevent movement and stress on the fibers .
2. Splicing or Termination
   • Splicing: If the cable fibers need to be joined to pigtails, use splice trays to protect the fusion or mechanical splices. Ensure proper bend radius and coil excess fiber neatly .
   • Termination: Attach connectors (LC, SC, MPO/MTP) to pigtails and plug them into adapter panels on the ODF/FDF. This allows easy cross-connection and patching to active equipment .
3. Cable Management and Slack Storage
   • Use rings, guides, and holders to route fibers neatly within the frame, avoiding sharp bends or stress points .
   • Store excess fiber in designated slack storage areas or trays to maintain bend-radius compliance and facilitate future maintenance .
4. Labeling and Documentation
   • Clearly label all fibers, ports, and patch panels for quick identification and troubleshooting .
   • Maintain a record of fiber routes, splice points, and connections to simplify network management and expansion.
5. Protection and Maintenance
   • Ensure fibers are shielded from mechanical damage, dust, and environmental interference.
   • Regularly inspect connectors and clean as needed to prevent signal degradation .

Best Practices

• Plan cable entry and routing to minimize stress and maintain bend radius.
• Use modular patch panels for scalable expansion.
• Group multiple optical cables with frequent interconnections on the same frame to simplify management .
• Select an ODF/FDF with sufficient fiber core capacity to accommodate current and future network growth . By following these steps, fiber optic cables can be efficiently connected to an ODF/FDF, ensuring organized, reliable, and scalable optical network infrastructure.
