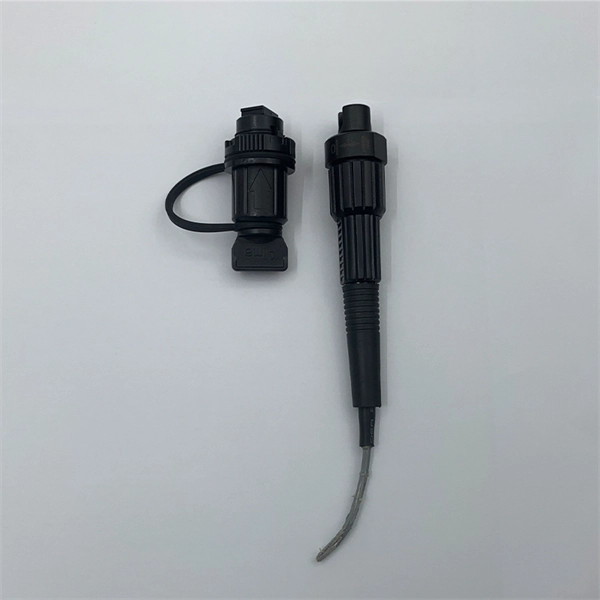

Lc fiber optic interface connection method

Fiber optic splice closure knowledge brief Published 26 Feb 2023

Prepared for preliminary research by the RIVO OPTICAL knowledge desk. Confirm cable count, splice capacity, sealing class, tray layout, protection sleeves and installation requirements against current standards and product documentation.

Connecting an LC fiber optic interface involves careful preparation, cleaning, insertion, and testing to ensure a reliable, low-loss optical connection.Tools and Materials Needed
  • LC fiber connectors (simplex or duplex)
  • Fiber optic stripper or cutter
  • Alcohol wipes or fiber cleaning pen
  • High-precision fiber cleaver (if terminating bare fiber)
  • Microscope or magnifying glass for inspection
  • Power meter or OTDR for testing
  • Optional: fusion splicer or fiber insertion tool for secure termination
Step-by-Step Connection Process

1. Preparation Ensure your work area is clean and free of dust. For new cables, carefully remove the outer jacket without damaging the inner fiber. Keep protective dust caps on pre-terminated connectors until ready to connect . 2. Fiber Stripping and Cleaning Use a fiber stripper to remove the protective coating, exposing the bare fiber. Wipe the fiber with an alcohol pad or cleaning pen to remove dust, grease, or fingerprints. A clean fiber end is critical to minimize signal loss . 3. Fiber Cleaving (for bare fiber termination) Score the fiber at a 90° angle using a high-precision cleaver. Inspect the end face under a microscope to ensure it is smooth and free of cracks or defects . 4. Inserting the Fiber into the LC Connector Carefully insert the cleaned fiber into the LC connector, ensuring it aligns with the internal ferrule. For duplex connections, ensure transmit and receive fibers are correctly paired. Push until you feel a slight click, indicating proper engagement . 5. Inspection and Testing Use a magnifying glass or microscope to inspect the connection. Check for proper alignment and absence of bending or damage. Test the connection with a power meter to measure optical loss and verify signal presence. For critical links, an OTDR can analyze the entire fiber path .

Best Practices
  • Always clean connectors before reconnecting, even if they appear clean.
  • Avoid bending the fiber sharply; maintain proper bend radius.
  • Document test results for future troubleshooting.
  • Use LC connectors for high-density applications due to their small 1.25 mm ferrule and push-pull latch mechanism, which allows secure, repeatable connections . By following these steps and precautions, you can achieve a reliable LC fiber optic connection with minimal signal degradation, suitable for data centers, telecom systems, and high-speed network deployments .
