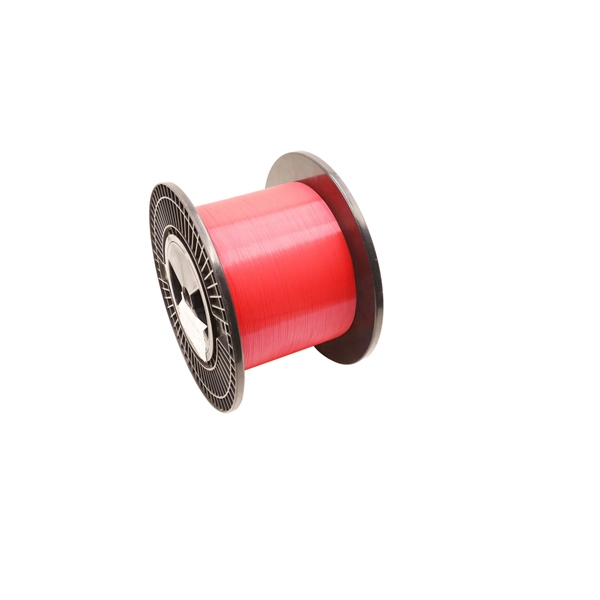

How to connect a fiber optic cable to a network cable panel

Connecting a fiber optic cable to a network panel requires proper termination, compatible connectors, and careful handling to ensure optimal signal performance.Step 1: Gather Necessary Tools and Equipment

Before starting, ensure you have the following:

• Fiber optic cable (single-mode or multi-mode depending on your network requirements)
• Connector kits (LC, SC, or ST connectors compatible with your panel)
• Fiber media converter (if connecting fiber to copper Ethernet ports)
• Cleaver and fusion splicer (for precise fiber cutting and permanent splicing)
• Safety equipment (gloves and safety glasses to protect against glass shards)
• Cable management tools (velcro straps, cable trays) to prevent bending or tension .

Step 2: Prepare the Fiber Cable

1. Strip the outer jacket carefully without damaging the inner glass fibers.
2. Clean the fiber using alcohol wipes to remove dust or debris.
3. Cut the fiber to the required length using a precision cleaver.
4. Attach the connector using a fusion splicer or mechanical connector kit, ensuring proper alignment .

Step 3: Connect to the Network Panel

1. Identify the correct port on the network panel that matches your fiber connector type (LC, SC, or ST).
2. Insert the fiber connector into the panel port until it clicks securely. Avoid forcing the fiber, as this can damage the core.
3. If converting to Ethernet, connect the fiber to a fiber media converter, then use a standard Ethernet cable to link the converter to the network panel or switch .

Step 4: Cable Management

• Avoid sharp bends; maintain the minimum bend radius specified by the manufacturer.
• Secure excess cable with velcro straps or cable organizers to prevent tension or loops that could degrade signal quality .

Step 5: Test the Connection

• Use a visual fault locator or Optical Time Domain Reflectometer (OTDR) to check for breaks, misalignment, or signal loss.
• Verify connectivity by testing network performance through the panel or connected devices .

Additional Tips

• Label each fiber for easy identification in complex panels.
• Follow ANSI/TIA/EIA standards for fiber installation to ensure compatibility and reliability.
• Handle fibers carefully; even minor scratches or dust can significantly reduce performance . By following these steps, you can securely connect a fiber optic cable to a network cable panel, ensuring high-speed, reliable network performance while maintaining safety and long-term durability.
