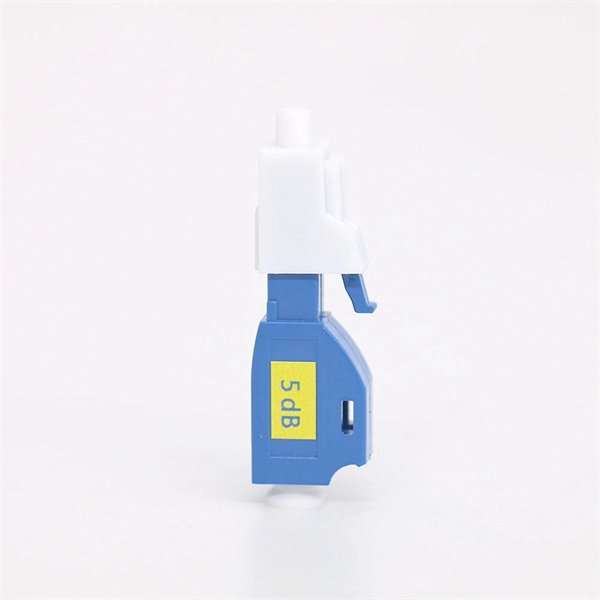

Optical Module Testing Device

Optical module testing tools include power meters, BERT testers, optical spectrum analyzers, loopback devices, and advanced photonic test systems to ensure performance, reliability, and compliance.Key Testing Tools and Their Functions

1. Optical Power Meters Used to measure the transmit and receive power levels of optical modules, ensuring they meet specifications and avoid overloading receivers or causing signal degradation (Link-PP) . 2. Bit Error Rate Testers (BERT) BERT testers send pseudo-random bit sequences (PRBS) to detect transmission errors, measure jitter, and verify signal quality, especially for high-speed modules like 25G+ or long-haul transceivers . 3. Digital Diagnostic Monitoring (DDM/DOM) Monitors real-time parameters such as temperature, voltage, bias current, and optical power. DDM ensures modules operate within safe limits and comply with IEEE 802.3 and MSA standards . 4. Loopback Testing Loopback plugs or secondary modules are used to verify full-duplex operation and validate DDM accuracy without requiring a full network link . 5. Eye Diagram Validation For high-speed modules like QSFP28 or PAM4, eye diagram testing evaluates signal clarity, mask margins, and jitter levels, providing insight into link quality and signal integrity . 6. Optical Spectrum Analyzers (OSA) and Tunable Lasers Used to analyze wavelength, spectral width, and signal quality of optical modules. These tools are essential for coherent transmission testing and photonic component characterization (Keysight) . 7. Advanced Photonic Test Systems Platforms like Yokogawa's Multi Application Test System (MATS) and Luna's OBR reflectometers provide high-precision, high-throughput testing for optical devices, transceivers, and photonic components. They integrate multiple instruments such as OSAs, BERTs, high-speed oscilloscopes, and polarization controllers for comprehensive testing in R&D, manufacturing, and field deployment .

Best Practices for Optical Module Testing

• Verify power levels to prevent receiver overload or signal loss.
• Check DDM/DOM readings for real-time monitoring of module health.
• Perform loopback tests to validate module functionality without a full network setup.
• Use eye diagrams to assess signal integrity for high-speed modules.
• Ensure MSA compliance and EEPROM accessibility for interoperability with OEM equipment .
• Consider environmental factors such as grounding, heat dissipation, and electromagnetic compatibility during testing and deployment (FS) .

Applications

Optical module testing tools are used in:

• Data centers for high-speed transceiver validation.
• Telecom networks to ensure long-term reliability and SLA compliance.
• Photonic R&D for new component characterization.
• Manufacturing for quality control and high-volume production testing.
• Field maintenance to troubleshoot and optimize fiber optic links . By combining these tools and methodologies, engineers can ensure optical modules perform reliably, meet industry standards, and maintain high-quality network connectivity.
