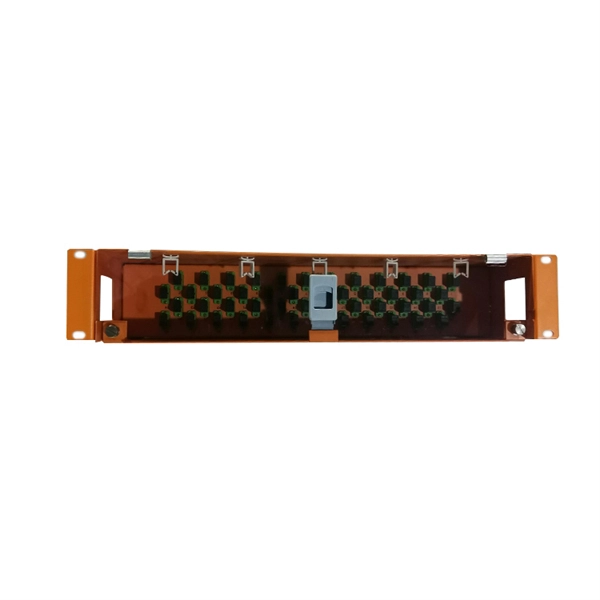

Optical modules are compact devices that convert electrical signals into optical signals and vice versa, while optical guide components manage, route, and manipulate these optical signals within fiber optic networks.Optical Modules

Definition and Function: Optical modules, also known as optical transceivers, are essential in fiber optic communication systems for high-speed data transmission. They perform electro-optical and photo-electric conversion, bridging electrical equipment and optical fibers, enabling data to travel over long distances with minimal loss and interference . Key Components:

  • TOSA (Transmitter Optical Sub-Assembly): Converts electrical signals into optical signals using a laser diode (LD) or LED, an optical interface, a monitoring photodiode, and an electrical interface. LDs are preferred for higher output power, lower energy consumption, and better coupling efficiency, while LEDs are suitable for low-rate, short-distance applications .
  • ROSA (Receiver Optical Sub-Assembly): Converts incoming optical signals back into electrical signals. It includes a photodetector (PIN or APD), a Trans-impedance Amplifier (TIA), and a Post Amplifier. APDs provide higher sensitivity through avalanche multiplication, improving receiver sensitivity by 6–10 dB .
  • PCBA (Printed Circuit Board Assembly): Integrates active and passive electronic components to ensure the module's functionality and reliability .
  • Fiber Optic Connector: Provides the interface for connecting the module to single-mode or multi-mode fiber optic cables.
  • Digital Diagnostic Monitoring (DDM): Monitors parameters like operating voltage, temperature, transmitted/received optical power, and laser bias current in real time . Types of Optical Modules:
  • SFP (Small Form-factor Pluggable): Up to 1 Gbps, suitable for enterprise networks.
  • SFP+: Enhanced SFP, supporting up to 10 Gbps, common in data centers.
  • QSFP (Quad SFP): Supports 40–100 Gbps, ideal for high-performance computing.
  • CFP (C Form-factor Pluggable): Used for very high-speed applications .
Optical Guide Components

Definition and Function: Optical guide components are passive or active devices that manage, route, and manipulate optical signals within a network. They are critical for building flexible, high-performance optical networks . Common Components:

  • WDM Filters (DWDM/CWDM): Multiplex or demultiplex multiple wavelengths for efficient bandwidth utilization.
  • Planar Waveguides and Fused WDM Components: Guide light with minimal loss and allow integration of multiple channels.
  • Optomechanical and MEMS Switches: Enable signal routing, protection, and dynamic reconfiguration. MEMS-based switches can handle frequent switching and multicast applications.
  • Circulators and Isolators: Facilitate bi-directional transmission and prevent back-reflection.
  • Variable Optical Attenuators (VOA) and Tap PDs: Manage signal power and monitor optical performance.
  • Integrated Modules (OCM, OTDR): Provide compact solutions for monitoring, testing, and signal conditioning . Applications: Optical guide components are used in WDM networks, data centers, metro and long-haul networks, and in systems requiring high-density, agile, and reliable optical signal management.
Summary

Optical modules and optical guide components together form the backbone of modern fiber optic networks. Modules handle the conversion between electrical and optical signals, while guide components control, route, and optimize the optical signals for efficient, high-speed communication. Understanding their structure, types, and functions is crucial for designing, deploying, and maintaining advanced optical networks .
