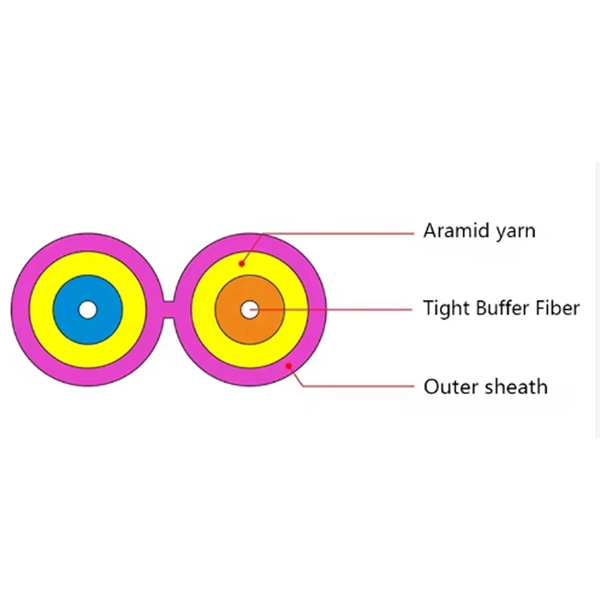

400-core optical fiber splicing

Splicing 400-core optical fiber requires high-capacity ribbon fusion splicers and robust splice closures to ensure low-loss, high-integrity connections.Fusion Splicing Equipment

For 400-core fiber, ribbon fusion splicers like the KL-400 or NT-FSPLICE-400 are commonly used. These splicers support multi-core ribbon fibers, with automatic alignment and fusion cycles as fast as 9–18 seconds per splice . Key features include:

• High-precision V-groove alignment for multi-core cladding
• Automatic heating for protective sleeves
• Battery-powered operation for field deployment
• Compatibility with single-core and 2–12-core ribbons, scalable for larger fiber counts Fusion splicing creates a molecular bond between fiber ends, eliminating air gaps and ensuring low insertion loss (≤0.02 dB) and high mechanical integrity (>95% of fiber tensile strength) . This is critical for long-haul, FTTH, 5G backhaul, and data center interconnects.

Splice Closures

Managing 400 fibers requires high-capacity splice closures like the FOSC-400 series . These closures provide:

• Environmentally sealed enclosures for outdoor deployment
• Flexible cable port configurations for main distribution and branch cables
• Slack storage baskets for ribbon and loose fibers
• Mechanical and heat-shrink sealing systems for reliable re-entry and maintenance Closures are designed for aerial, pedestal, buried, handhole, or manhole installations, supporting various splice types including expressed, tap-off, branch, and repair splices.

Splicing Process Overview

1. Fiber Preparation: Strip the coating using precision tools, clean, and cleave fibers to ensure smooth end faces.
2. Alignment: Place fibers in the splicer's V-groove or ribbon holder for automatic core alignment.
3. Fusion: Apply an electric arc to fuse fiber ends, forming a permanent, low-loss joint.
4. Protection: Slide a heat-shrink sleeve over the splice and activate the splicer's heater.
5. Storage: Organize spliced fibers in the closure's slack storage trays to prevent bending or stress.

Best Practices

• Use high-quality cleavers and strippers to minimize end-face defects.
• Maintain a clean environment to prevent dust or moisture contamination.
• Test splices with an OTDR to verify insertion loss and return loss.
• Plan fiber routing and slack management carefully to accommodate 400 fibers without exceeding bend radius limits. By combining high-speed ribbon fusion splicers with robust FOSC-400 closures, technicians can efficiently splice and manage 400-core optical fiber networks while maintaining signal integrity and long-term reliability .
