How to bring out a pigtail network in a fiber optic network

To bring out a pigtail network, use factory-terminated fiber pigtails fused to your main fiber cables, ensuring low-loss, reliable connections.Understanding Fiber Optic Pigtails

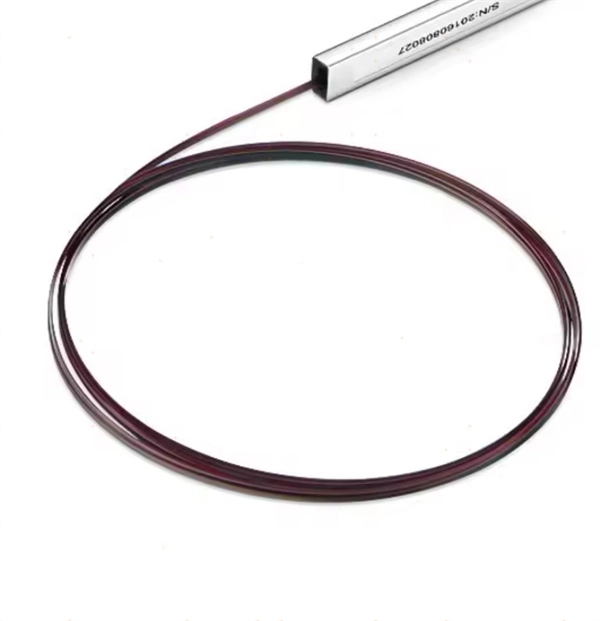

A fiber optic pigtail is a short optical fiber with a pre-installed connector on one end and a bare fiber on the other. The connector end plugs into equipment, patch panels, or optical distribution frames (ODFs), while the bare end is permanently spliced to the incoming fiber cable. This approach combines the precision of factory connectors with the flexibility of field splicing, making it ideal for single-mode and multimode networks ( ).

Steps to Bring Out a Pigtail Network

1. Prepare the Fiber Cable
   • Strip the outer jacket carefully to expose the fiber.
   • Clean the fiber with alcohol wipes to remove dust and debris.
   • Make a precise cleave to ensure optimal splicing ( ).
2. Select the Right Pigtail
   • Choose the correct connector type (LC, SC, ST, FC, etc.) and fiber type (single-mode or multimode) based on your network requirements.
   • Ensure the pigtail is pre-tested and factory-polished to minimize signal loss ( ).
3. Splicing the Pigtail
   • Use a fusion splicer to join the bare end of the pigtail to the incoming fiber. Fusion splicing provides the lowest insertion loss and highest reliability.
   • Apply a heat-shrink sleeve over the splice for protection and durability ( ).
4. Testing and Verification
   • Use an OTDR (Optical Time-Domain Reflectometer) or a power meter to verify the splice quality and ensure minimal signal loss.
   • Confirm that all connections meet network performance standards ( ).
5. Organizing the Network
   • Route the pigtails neatly in a splice tray or ODF to prevent bending or stress on the fibers.
   • Label each pigtail for easy identification and maintenance ( ).

Best Practices

• Always use high-quality, pre-tested pigtails to reduce installation errors.
• Keep tools clean and calibrated; dust or misalignment can significantly increase loss.
• Avoid field-terminating connectors manually, as factory-terminated pigtails provide more consistent performance ( ). By following these steps, you can efficiently bring out a pigtail network that is reliable, low-loss, and ready for integration with active equipment or patch panels.
