Configuration of Explosion-proof Fiber Optic Switch

Explosion-proof fiber optic switches require careful selection of intrinsically safe components, proper cabling, and adherence to hazardous area standards to ensure safe and reliable operation.Key Considerations for Configuration

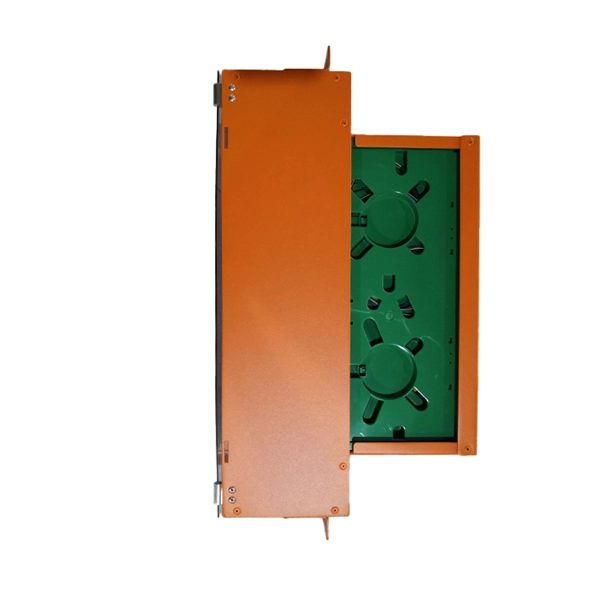

1. Hazardous Area Classification and Enclosures Explosion-proof fiber optic switches must be installed in compliance with ATEX/IECEx standards for zones 1, 2, 21, and 22. The enclosure should be stainless steel or equivalent pressure-resistant material to prevent ignition from sparks or heat ( ). Terminal boxes like the BXJ93 series provide integrated fiber optic fusion panels and space for coiling redundant fibers, minimizing bending and signal loss ( ). 2. Optical Interfaces and Transceivers Use SFP transceivers to convert electrical interfaces to optical ones. For intrinsically safe connections, LC connectors are recommended, while non-intrinsically safe connections may allow other connector types ( ). Ensure that the optical interfaces on both ends of the connection have matching properties to maintain signal integrity. 3. Fiber Optic Switch Types Fiber-optic switches can range from simple on/off switches to complex matrix configurations. Mechanical switches may use mirrors, prisms, or fiber shuffling, while MEMS-based switches allow high-speed microsecond switching with precise control ( ). Selection depends on application requirements such as switching speed, insertion loss, and optical power handling. 4. Cabling and Routing Cables should be routed according to Factory Electrical Facilities Explosion-Proofing Guidelines. Avoid leaving switch covers or conduits open to prevent dust or water ingress, which could compromise the explosion-proof integrity ( ). Redundant fiber paths should be coiled properly to prevent excessive bending and signal degradation ( ). 5. Safety and Maintenance

• Perform periodic inspections of actuator operation, terminal screws, and external surfaces.
• Replace any switch showing damage or liquid ingress; parts in explosion-proof switches are generally non-replaceable ( ).
• Use non-ignitable actuator components such as nylon or brass rollers.
• Ensure operation remains within specified reference and limitation values for each product ( ). 6. Integration with Networks Explosion-proof fiber optic switches can be integrated into PROFINET or other industrial networks. Optical connections allow safe communication between devices in hazardous zones and the main network, maintaining intrinsic safety while supporting high-speed data transfer ( ).

Recommended Configuration Steps

1. Identify the hazardous zone classification and select certified enclosures.
2. Choose fiber optic switches suitable for the required switching type and speed.
3. Select SFP transceivers and LC connectors for intrinsically safe optical links.
4. Install fiber optic cables with proper coiling and routing to avoid bending and maintain signal quality.
5. Connect switches to the network, ensuring matching optical properties on both ends.
6. Implement a maintenance schedule to inspect and replace any compromised components. By following these guidelines, explosion-proof fiber optic switches can be safely configured for industrial applications, ensuring both operational reliability and compliance with safety standards.
