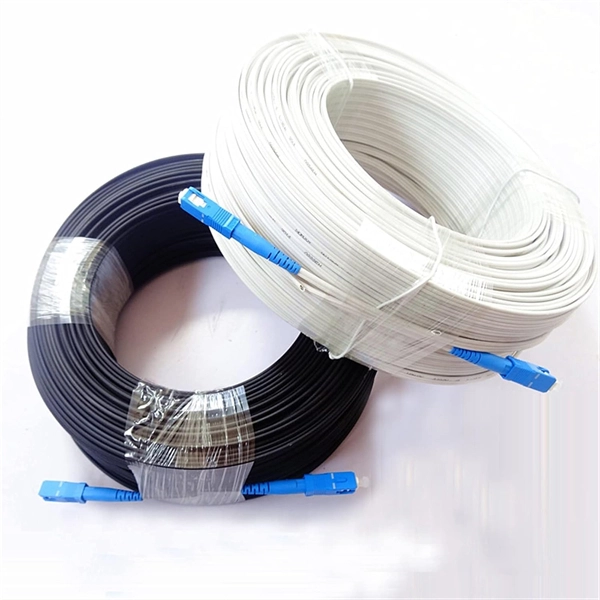

Fiber optic patch cords come in a bunch with one connector

A fiber optic patch cord with one connector is typically called a pigtail, used to terminate a fiber strand on one end while the other end is spliced or connected to a network.What It Is

A standard fiber optic patch cord has connectors on both ends and is used to link devices like switches, transceivers, or patch panels . In contrast, a pigtail is a fiber cable with a connector on only one end, leaving the other end bare for splicing into a fiber network or backbone . This design allows for flexible integration into existing fiber infrastructure without requiring pre-terminated cables on both ends.

Types and Configurations

• Simplex Pigtail: Contains a single fiber strand with one connector, ideal for connecting a single device to a network .
• Duplex Pigtail: Two fibers with connectors on one end, supporting simultaneous transmit and receive channels.
• Ribbon Fiber Pigtail: Bundles multiple fibers into a single connector, often used in high-density applications like data centers .

Fiber Modes

• Single-mode (SM): 9µm core, used for long-distance, high-speed transmission. Typically yellow in color .
• Multimode (MM): 50µm or 62.5µm core, suitable for short-distance connections within data centers. Colors include orange, aqua, or lime green depending on the OM standard .

Applications

• Splicing into backbone networks: Pigtails are spliced to trunk cables in telecom or data center environments.
• Fiber-to-the-home (FTTH): Single-ended connectors allow easy termination at customer premises.
• High-density patch panels: Ribbon pigtails enable multiple fibers to be connected efficiently in a single connector .

Key Considerations

• Connector type: LC, SC, ST, or MPO depending on equipment compatibility .
• Jacket material: PVC, LSZH, or plenum-rated for indoor, high-safety, or air-duct installations .
• Bend-insensitive fiber: Useful in tight spaces to reduce signal loss . In summary, fiber optic patch cords with one connector (pigtails) are essential for splicing and high-density applications, providing flexibility in network design while maintaining reliable optical performance. They differ from standard patch cords by having only one pre-terminated end, making them ideal for integration into existing fiber networks.
