10 Gigabit 10km Optical Module Receiver Sensitivity

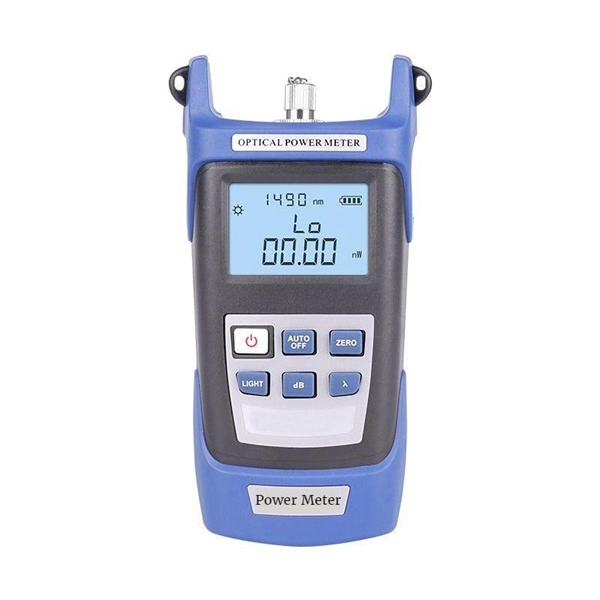

Standard 10GBASE-LR SFP+ modules have a receiver sensitivity of approximately −14 to −15 dBm for reliable 10 km single-mode fiber links.Receiver Sensitivity and Optical Power

The receiver sensitivity of a 10GBASE-LR SFP+ transceiver, which operates at 1310 nm over single-mode fiber (SMF), is typically −14 to −15 dBm. This means the module can reliably detect optical signals down to this power level, ensuring stable 10 Gb/s data transmission over distances up to 10 km . The maximum received optical power is usually around −1 dBm, beyond which the receiver may saturate and signal integrity could degrade .

Optical Power Budget

The optical power budget—the difference between the transmitter output and the receiver sensitivity—typically ranges from 8 to 11 dB, depending on fiber quality, connector losses, and splices . This margin accounts for real-world factors such as fiber aging, temperature variations, and additional interconnect losses, ensuring reliable link performance.

Dispersion and Fiber Considerations

10GBASE-LR modules tolerate chromatic dispersion up to 1.0 ns/nm, which is sufficient for standard SMF deployments over 10 km . Proper LC duplex connector alignment and polarity compliance are essential to maintain signal integrity. Modules often include Digital Diagnostic Monitoring (DDM/DOM) to monitor Tx/Rx power, voltage, and temperature in real time .

Summary

For a 10 km 10G optical link using 10GBASE-LR SFP+ modules:

• Receiver Sensitivity: −14 to −15 dBm
• Maximum Rx Power: −1 dBm
• Optical Power Budget: 8–11 dB
• Dispersion Tolerance: 1.0 ns/nm
• Connector Type: LC duplex, with proper polarity
• Monitoring: Optional DDM/DOM support for real-time diagnostics By adhering to these specifications, network engineers can ensure reliable 10G connectivity over 10 km of single-mode fiber, minimizing signal degradation and maintaining interoperability across devices from different vendors .
