How to connect a dual-core fiber optic socket panel

To connect a dual-core fiber optic socket panel, use duplex fiber cables with LC connectors, ensuring proper alignment of transmit (Tx) and receive (Rx) channels and secure mating with a coupler or adapter.Step-by-Step Connection Process

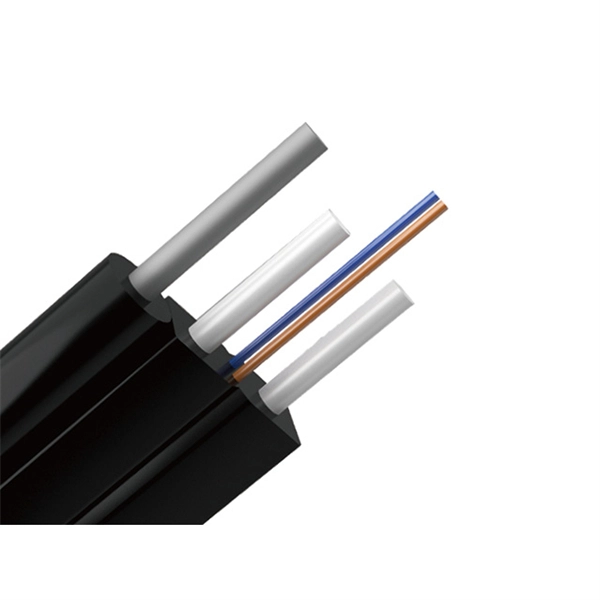

1. Identify the Connector Type and Fiber Mode Most dual-core panels use duplex LC connectors, which house two fibers side-by-side—one for transmit (Tx) and one for receive (Rx) . Confirm whether your fiber is single-mode or multimode, as this affects the type of cable and connector polish (UPC or APC) . 2. Prepare the Fiber Cable Use a pre-terminated duplex fiber optic cable to simplify installation. Each cable has two fibers with LC connectors already attached, reducing the risk of misalignment and signal loss . Ensure the cable is clean and free of dust or debris. 3. Match Transmit and Receive Channels Check the panel labeling: one port is typically marked Tx and the other Rx. Connect the Tx of the cable to the Rx of the panel and vice versa to maintain proper signal flow . 4. Insert the Duplex Connector Push the duplex LC connector into the panel port until the latch clicks securely. Duplex connectors have a clip that holds the two fibers together, ensuring both fibers are connected simultaneously . Avoid bending the fiber sharply to prevent damage. 5. Use a Coupler or Adapter if Needed If connecting two separate panels or extending the fiber, use an LC-LC coupler. This device aligns the fibers precisely and maintains low insertion loss and high return loss . 6. Verify the Connection After connecting, test the link with an optical power meter or fiber tester to ensure proper signal transmission and minimal loss. Adjust if necessary, following the panel's polarity and alignment guidelines . 7. Secure and Manage Cables Route the fiber neatly using cable management trays or clips to prevent stress on the connectors. Avoid tight bends and maintain the minimum bend radius specified by the manufacturer .

Best Practices

• Always clean connectors before mating to prevent contamination.
• Maintain polarity consistency to avoid Tx/Rx mismatches.
• Use pre-terminated cables whenever possible to reduce installation errors.
• Label both ends of the fiber for easy identification and troubleshooting. By following these steps, a dual-core fiber optic socket panel can be connected efficiently, ensuring reliable two-way communication with minimal signal loss.
