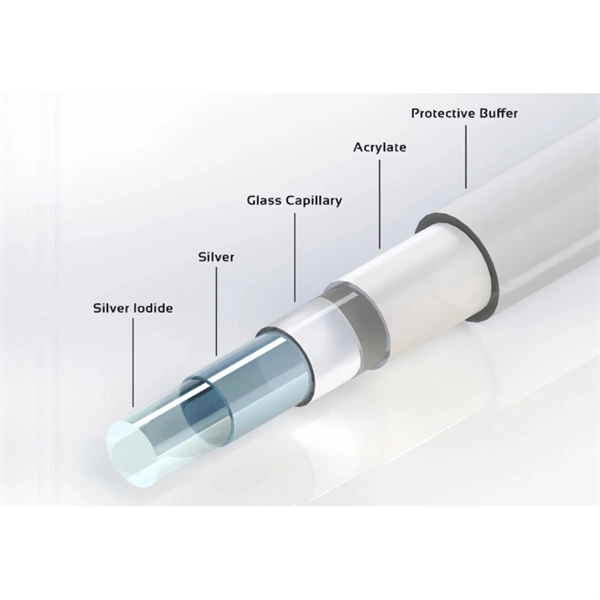

Fiber optic pigtail fault

Diagnosing fiber optic pigtail faults involves visual inspection, testing for signal loss, and identifying physical or environmental damage that affects connectivity.Common Symptoms of Pigtail Faults

Fiber pigtail issues often manifest as signal loss, intermittent connectivity, or elevated bit error rates (BER). Specific indicators include:

• Sudden drops in signal strength or fluctuating link performance during high traffic periods .
• Increased insertion loss requiring higher power to maintain a connection .
• Gradual performance decline due to environmental factors like UV exposure, thermal stress, or hydrogen darkening in single-mode fibers .
• Complete signal loss caused by crushed cables, rodent damage, or improper cable management .

Visual Inspection

A visual check is the first step in diagnosing pigtail faults:

• Inspect the connector end-face for dust, fingerprints, scratches, pits, or chips .
• Look for sharp bends, cracks, or kinks in the fiber coating, which can weaken the glass core .
• Check for misalignment by gently pulling or rotating the connector; any movement may indicate compromised internal alignment .
• Use a microscope to examine the ferrule surface for contamination or damage .

Testing Tools and Techniques

Several tools can help pinpoint faults along the fiber:

• Visual Fault Locator (VFL): Emits a visible red light through the fiber to identify breaks, severe bends, or poor splices .
• Optical Fault Finders / OTDRs: Measure fiber length and detect high-loss events, breaks, or splices by sending laser pulses and analyzing reflected light .
• Insertion Loss Testing: Measures the power loss across the pigtail to detect misalignment or contamination .

Common Causes of Pigtail Failures

• Contaminated connectors: Dust, oil, or scratches on end-faces .
• Improper splicing: Air gaps or poor fusion splices .
• Excessive bending: Violating minimum bend radius (>10 mm for standard single-mode fiber), .
• Environmental stress: Extreme temperatures, UV exposure, or rodent damage .
• Connector mismatch: Using incompatible polish types (UPC vs. APC) or damaged ferrules .

Best Practices for Diagnosis

• Start with a visual inspection before technical testing to quickly identify obvious faults .
• Use a launch fiber when testing with OTDRs or fault finders to detect incidents near the ends of the link .
• Combine microscope inspection with testing tools to confirm contamination or alignment issues .
• Document and monitor signal performance over time to detect gradual degradation . By following these steps, technicians can efficiently identify, isolate, and resolve fiber pigtail faults, ensuring reliable network performance and minimizing downtime.
