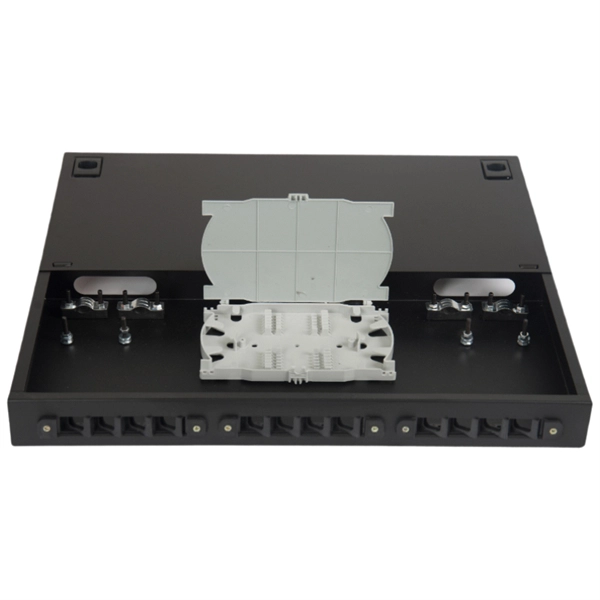

Long-distance trunk optical cable testing

Long-distance trunk fiber optic cables are tested using a combination of OTDR, OLTS, insertion loss, and visual inspection to ensure signal integrity, locate faults, and verify compliance with design specifications.Key Testing Methods

1. Optical Time-Domain Reflectometer (OTDR) Testing OTDR testing is essential for long-distance fiber links. It sends light pulses down the fiber and measures backscattered and reflected light to create a distance-based map of the cable. This trace identifies splices, connectors, bends, breaks, and reflective events, allowing technicians to locate faults and estimate event loss and reflectance. OTDR testing is particularly useful for backbone networks and metropolitan area networks where cable lengths are extensive and faults may occur at multiple points along the route . 2. Optical Loss Test Set (OLTS) / Insertion Loss Testing OLTS measures the total optical loss of a fiber link by sending light from one end and measuring the received power at the other. This confirms whether the cable meets the design loss budget and is required for Tier 1 fiber testing per TIA and ISO standards. OLTS testing complements OTDR by providing end-to-end loss certification, which OTDR alone cannot fully verify . 3. Visual Inspection and Fiber Endface Testing Before and after optical measurements, visual inspection of connectors and fiber endfaces is performed to detect contamination, scratches, or cracks that can degrade performance. Fiber inspection probes magnify the endface to ensure proper cleaning and alignment, which is critical for long-distance links . 4. Continuity and Mechanical Integrity Testing Continuity testing ensures that each fiber core is intact and correctly mapped. Mechanical integrity checks detect latent defects caused by improper handling during installation, which may not be revealed by optical tests alone .

Testing Procedure for Long-Distance Trunks

1. Pre-Installation Testing: Factory tests verify fiber quality and connector integrity.
2. Post-Installation Testing: OTDR and OLTS tests are performed to document the installed link. Launch and receive cables are used to avoid OTDR dead zones at the start and end of the fiber .
3. Trace Analysis: OTDR traces are reviewed for event location, loss, and reflectance, and compared against baseline measurements. Bidirectional testing improves accuracy for event loss calculations.
4. Acceptance Documentation: Test results, including OTDR traces and OLTS insertion loss measurements, are compiled for project handover and compliance verification .

Best Practices

• Use bidirectional OTDR testing to account for variations in backscatter.
• Clean and inspect all connectors before testing.
• Match OTDR pulse width and range to fiber length for accurate event detection.
• Combine OTDR and OLTS results to ensure both event-level and end-to-end performance are within specifications.
• Follow TIA, ISO, and IEC standards for testing procedures and acceptance criteria . By integrating these methods, network operators can ensure that long-distance trunk optical cables perform reliably, meet bandwidth requirements, and maintain signal integrity over their operational lifetime .
