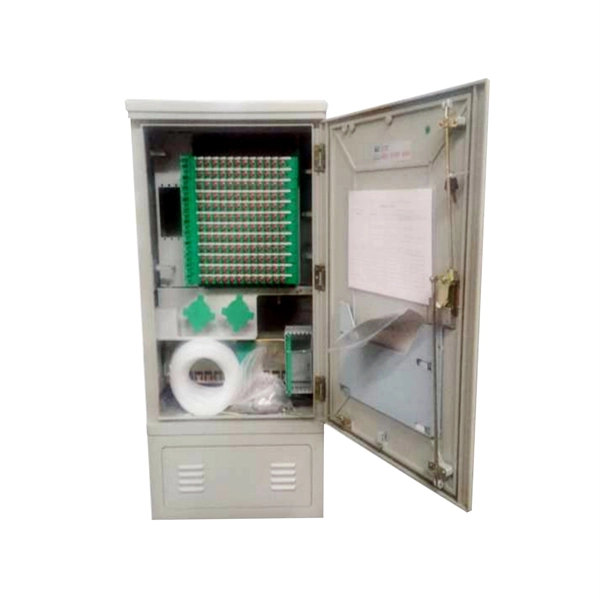

Passive Optical Device Specifications

Passive optical devices are characterized by parameters such as insertion loss, return loss, polarization-dependent loss, polarization extinction ratio, and excess loss, which define their performance in fiber optic networks.Core Specifications

Insertion Loss (IL): The amount of optical power lost when light passes through a device. Lower IL indicates higher efficiency and is critical for maintaining signal strength across long fiber links . Return Loss (RL): Measures the fraction of light reflected back toward the source. High RL (low reflection) is essential to prevent interference and protect sensitive lasers . Polarization-Dependent Loss (PDL): Indicates how much the device's loss varies with the polarization state of the input light. Low PDL is important for coherent or polarization-sensitive systems . Polarization Extinction Ratio (PER): Relevant for polarization-maintaining (PM) components, PER quantifies the purity of the polarization axis. High PER ensures minimal cross-polarization interference . Polarization Mode Dispersion (PMD): Represents the differential delay between polarization modes. While often negligible in short links, PMD can affect high-speed or precision applications . Excess Loss: The additional loss beyond the ideal split or coupling, often reported alongside IL for accurate engineering comparisons . Uniformity: For splitters, uniformity describes how evenly optical power is distributed among output ports. PLC splitters typically provide high uniformity across multiple outputs .

Device Types and Related Specifications

Optical Splitters: Divide a single input signal into multiple outputs. Common split ratios include 1:2, 1:4, 1:8, 1:16, 1:32, and 1:64. Each split introduces IL (typically 3–4 dB per split), which must be balanced against network reach . Isolators: Allow light to pass in one direction while suppressing backward propagation. Key specs include forward IL and isolation (dB) to protect lasers . Circulators: Route light sequentially through multiple ports. Specifications include IL, isolation, and return loss, which vary with wavelength . Connectors: Common types include SC, LC, ST, and MTP/MPO. Connector choice affects back reflection, insertion loss, and suitability for high-density or high-speed networks . Arrayed Waveguide Gratings (AWGs): Used for wavelength multiplexing/demultiplexing. Key specs include channel spacing, insertion loss, crosstalk, and uniformity .

Operational Considerations

• High-Power Handling: Laser-induced damage threshold (LIDT), coating absorption, and thermal design are critical for high-power applications .
• Reliability and Compliance: Telcordia standards, RoHS, and REACH compliance ensure long-term performance and supply chain stability .
• Environmental Factors: Temperature, wavelength, and connector endface quality influence IL, RL, and PDL measurements .
• Network Design Impact: Proper selection of passive devices affects bandwidth efficiency, signal integrity, and scalability in PON, FTTH, and data center networks . In summary, passive optical devices are defined by a combination of optical loss, polarization characteristics, reflection control, and uniformity, all of which must be carefully considered to ensure reliable, high-performance fiber optic networks.
