What are the protection devices for multimode optical cables

Multimode optical cables are protected using mechanical armoring, protective jackets, strain reliefs, and enclosures to prevent physical damage, environmental exposure, and signal loss.Cable Jackets and Sheathing

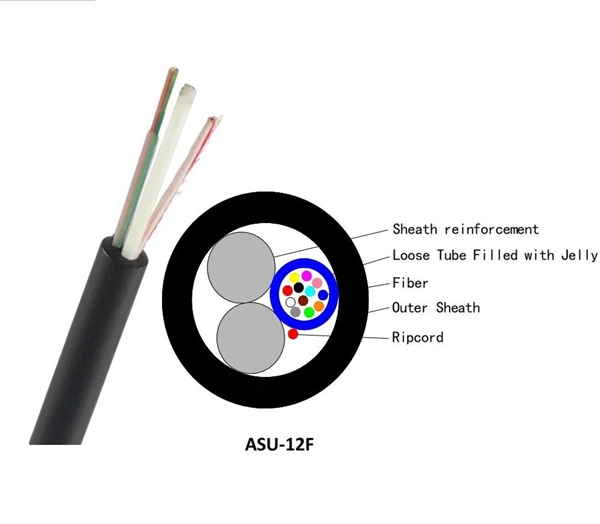

Multimode fiber cables are typically enclosed in polymer jackets that provide mechanical protection and environmental resistance. Indoor cables often use lightweight plastic covers, while outdoor-rated cables include UV-resistant, moisture-resistant, and temperature-tolerant jackets to withstand harsh conditions . The jacket also helps prevent abrasion and minor impacts during installation and operation.

Armoring

For additional protection, some multimode cables are armored with stainless steel tubes or metal layers. Armored cables are particularly useful in environments where the cable may be exposed to rodents, crushing forces, or other mechanical hazards . This layer ensures the fiber remains intact even under extreme stress.

Strength Members

Cables often include aramid yarns (e.g., Kevlar or Twaron) surrounding the fiber core. These strength members absorb tensile forces, reducing the risk of fiber breakage during pulling, bending, or installation . They also provide strain relief, which is critical for maintaining signal integrity.

Bend-Insensitive Fibers

Some multimode fibers are designed to be bend-insensitive, meaning they can tolerate tighter bend radii without significant signal loss . This feature acts as a built-in protection against accidental bending or coiling during installation.

Protective Enclosures and Connectors

At termination points, multimode fibers are often housed in patch panels, junction boxes, or conduit systems to prevent physical damage and environmental exposure . Connectors such as LC, SC, ST, or MPO/MTP are used with protective caps to safeguard the fiber ends from dust, scratches, and contamination.

Outdoor and Specialized Protection

For outdoor installations, multimode cables may include gel-filled tubes, water-blocking materials, or armored conduits to protect against moisture, temperature fluctuations, and mechanical stress . In high-power or laboratory applications, additional protective layers may be used to prevent optical damage or crosstalk.

Summary

Protection of multimode optical cables involves a combination of mechanical, environmental, and optical safeguards, including jackets, armoring, strength members, bend-insensitive fibers, and protective enclosures. Selecting the appropriate protection depends on the installation environment, expected mechanical stress, and performance requirements .
